Material: |
Iron & Galvanized Wire |
Feature: |
Uniform holes, Smooth surface;Excellent corrosion and rust resistance |
Application: |
Filtering chemical fiber |

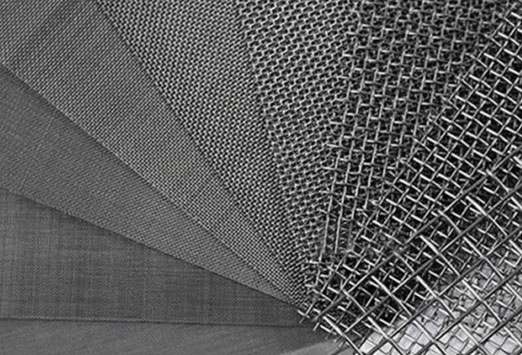

Black Wire Mesh
Material: Iron wire
Weaving Patterns: Plain weave, Twill weave, Herringbone weave, Dutch weave
Applications: Used as filters in the rubber, plastic, and grain industries.
| Mesh | Wire Diameter (mm) |
Mesh |
Wire Diameter (mm) |
Mesh |
Wire Diameter (mm) |
12 |
0.35 |
24 |
0.35 |
12X64 |
0.60X0.40 |
12 |
0.45 |
30 |
0.30 |
14X88 |
0.50X0.33 |
14 |
0.45 |
30 |
0.29 |
24X110 |
0.35X0.25 |
16 |
0.45 |
40 |
0.25 |
30X150 |
0.24X0.178 |
18 |
0.45 |
50 |
0.23 |
||
20 |
0.40 |
60 |
0.17 |
||
20 |
0.45 |
80 |
0.13 |
GALVANIZED WIRE MESH
Material: Iron wire, galvanized wire, hot-dipped galvanized wire
Applications: Used for window screens, liquid and gas filtration, and grain sieving.
| Mesh | Wire Diameter (mm) |
Opening (mm) |
3 |
1.60 |
6.87 |
4 |
1.20 |
5.15 |
5 |
0.95 |
4.13 |
6 |
0.80 |
3.43 |
8 |
0.70 |
2.43 |
10 |
0.60 |
1.94 |
12 |
0.55 |
1.56 |
14 |
0.41 |
1.40 |
16 |
0.35 |
1.24 |
18 |
0.30 |
1.11 |
20 |
0.27 |
1.00 |
22 |
0.25 |
0.90 |
24 |
0.23 |
0.83 |
26 |
0.20 |
0.78 |
28 |
0.18 |
0.73 |
30 |
0.15 |
0.70 |
35 |
0.14 |
0.59 |
40 |
0.14 |
0.50 |
50 |
0.12 |
0.39 |
60 |
0.12 |
0.30 |
